Spind Products

SPIND Mini Floor Gully/Trap

Think of Floor Trap,
Think of Spind

SPIND Mini Floor Gully/Trap – a top accessible floor trap to complement our existing range of floor traps. The floor trap is compact yet functional in every sense to allow top access for cleaning and maintenance purpose.

SIRIM BS EN 1253K3 Standards (SIRIM Certificate No.PS112002)

A truly innovative design that is compact for various installations where a conventional (150mm x 150mm) grating may not be suitable or look out of place. This design complements our highly innovative pipe sleeve with its 40mm inlet to connect from kitchen sink or basin without the need to crudely drill holes for connection. With this design, just punch a hole in the inlets provided and solvent cement the joint. No more leakage in future.

A fully cast in slab design simply allows for more headroom in toilet and at the same time eliminate messy conventional floor traps that protrude below the slab.

SPIND Mini Floor Gully/Trap

Think of Floor Trap,
Think of Spind

SPIND Mini Floor Gully/Trap – a top accessible floor trap to complement our existing range of floor traps. The floor trap is compact yet functional in every sense to allow top access for cleaning and maintenance purpose.

SIRIM BS EN 1253K3 Standards (SIRIM Certificate No.PS112002)

A truly innovative design that is compact for various installations where a conventional (150mm x 150mm) grating may not be suitable or look out of place. This design complements our highly innovative pipe sleeve with its 40mm inlet to connect from kitchen sink or basin without the need to crudely drill holes for connection. With this design, just punch a hole in the inlets provided and solvent cement the joint. No more leakage in future.

A fully cast in slab design simply allows for more headroom in toilet and at the same time eliminate messy conventional floor traps that protrude below the slab.

Connection of Air-condition drain pipe must be connected by using SPIND Special Design 20mm U-Bend with Bush. Dischange of Air-Condition drain pipe into floor trap may cause condensation on the floor trap base or on pipe leading to stack. Proper insulation with use of insuflex is recommended to prevent this problem.

Connection of Air-condition drain pipe must be connected by using SPIND Special Design 20mm U-Bend with Bush. Dischange of Air-Condition drain pipe into floor trap may cause condensation on the floor trap base or on pipe leading to stack. Proper insulation with use of insuflex is recommended to prevent this problem.

Grating Option

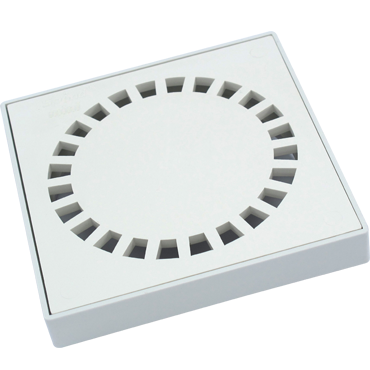

SPIND Mini Standard Plastic Grating & Collar
CollarUpvc or ABS plastic
GratingUpvc or ABS plastic

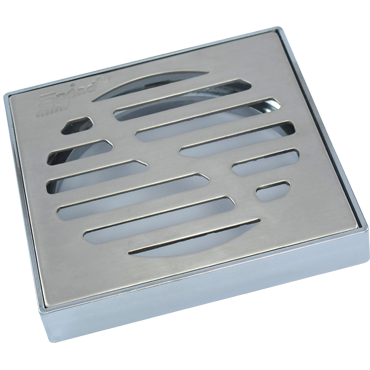

SPIND Mini Stainless Steel Grating & Plastic Chrome Collar
Collar Upvc or ABS Plastic Chrome
GratingStainless Steel SS304

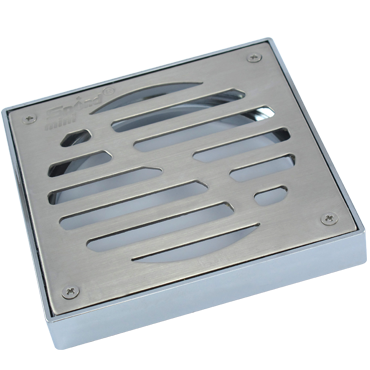

SPIND Mini Stainless Steel Grating & Plastic Chrome Collar
Collar Upvc or ABS Plastic Chrome
GratingStainless Steel SS304
Locking4 screws SS304 (Anti-Vandalism)

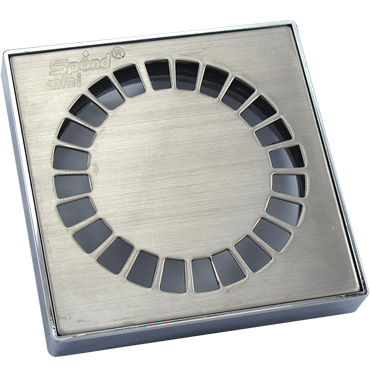

SPIND Mini Stainless Steel Grating & Plastic Chrome Collar (100mm x 100mm)
CollarUpvc or ABS Plastic Chrome
GratingStainless Steel SS304

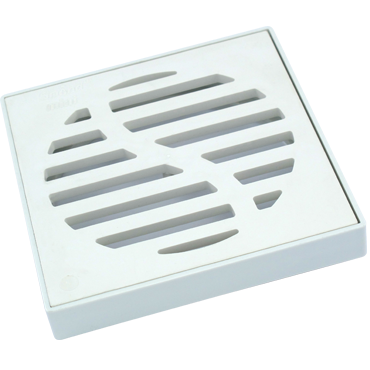

SPIND Mini Plastic Grating & Collar
CollarUpvc or ABS plastic
GratingUpvc or ABS plastic
SPIND Mini Stainless Steel Square Tile Holder (100mm x 100mm)
Collar Stainless Steel SS304
GratingStainless Steel SS304

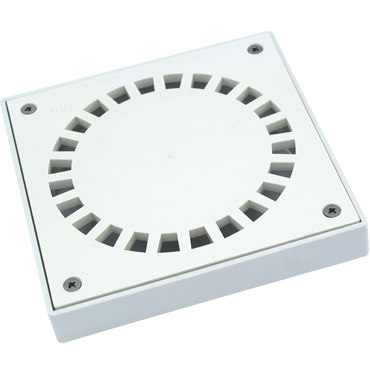

SPIND Mini Standard Plastic Grating & Collar
CollarUpvc or ABS Plastic
GratingUpvc or ABS Plastic
Locking4 screws SS304 (Anti-Vandalism)
SPIND Mini Stainless Steel Grating & Plastic Chrome Collar
CollarUpvc or ABS Plastic
GratingStainless Steel SS304

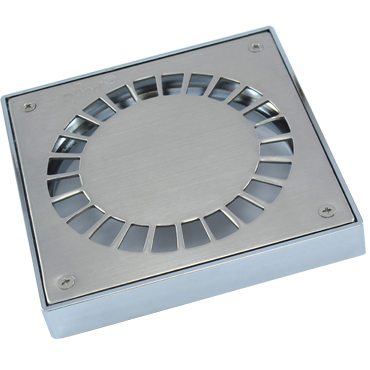

SPIND Mini Stainless Steel Grating & Plastic Chrome Collar (100mm x 100mm)
CollarUpvc or ABS Plastic
GratingStainless Steel SS304
Locking4 screws SS304 (Anti-Vandalism)
SPIND Mini Plastic Grating & Collar
CollarUpvc or ABS Plastic
GratingUpvc or ABS Plastic
Locking4 screws SS304 (Anti-Vandalism)
