Plastic pipe systems fulfill a variety of service requirements. Product standards for UPVC pipe systems are prepared within the CEN/TC standards committee. These requirements are described in a set of European Product Standards for each application alongside their specific characteristics.

UPVC Pipe Malaysia is capable of fulfilling the specific requirement for each application. They do so over a long lifetime and with reliability and safety. Most UPVC pipe systems are made from thermoplastic materials. The production method involves melting the material, shaping, and then cooling. Pipes are normally produced by extrusion.

These fittings are compiled with MS 1063 which intended to be used for soil and waste discharge pipe work for conveyence of domestic water waste (low and high temperature), ventilating pipe work and rainwater pipe work within building structure. this standard is equivalent to BS 5255, BS 4514, BS EN 1401 and BS EN 1320.

*UPVC Fittings are only available for export market.

Download Catalogue

SPIND UPVC

Spind UPVC Fittings

*UPVC Fittings are only available for export market.

Download Catalogue

Size & Range

UPVC Soil, Waste and Ventilating (S.W.V.) Fittings

Equal Single Branch

Code No	Size (mm)	Angle (°)	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)
FU/ESB-032S	32	91.25	36.3	36.3	89	24
FU/ESB-040S	40	91.25	42.9	42.9	109	25
FU/ESB-050S	50	91.25	55.9	55.9	135	28
FU/ESB-082S	82	92.5	82.6	82.6	205	45
FU/ESB-110S	110	92.5	110.2	110.2	270	50
FU/ESB-110S*50S	110X50	92.5	110.2	55.9	270	29.9
FU/ESB-110S*82S	110X82	92.5	110.2	82.6	270	47.8
FU/ESB-160S*110S	160X110	92.5	160.4	110.2	315	52
FU/ESB-160S	160	92.5	160.4	160.4	376	75.3
FU/ESB-200S	200	92.5	200.2	200.2	395.2	82.6

Equal Single Branch with 1/0

Code No	Size (mm)	Angle (°)	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)
FU/ESB-050S*I	50	91.25	55.9	55.9	135	28
FU/ESB-082S*I	82	92.5	82.6	82.6	205	45
FU/ESB-110S*I	110	92.5	110.2	110.2	270	50
FU/ESB-110S50SI	110X50	92.5	110.2	55.9	270	29.9
FU/ESB-110S82SI	110X82	92.5	110.2	82.6	270	47.8
FU/ESB-160S110SI	160X110	92.5	160.4	110.2	315	52
FU/ESB-160S*I	160	92.5	160.4	160.4	376	75.3

135° Y-Branch (Y-Tee)

Code No	Size (mm)	Angle (°)	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)
FU/YT-040S	40	135	42.9	42.9	110	25
FU/YT-050S	50	135	55.9	55.9	135	28
FU/YT-082S	82	135	82.6	82.6	205	46.5
FU/YT-110S	110	135	110.2	110.2	205	50
FU/YT-100S*I	110	135	110.2	110.2	255	50
FU/YT-160S	160	135	160.4	160.4	315	73.5
FU/YT-160S*110S	160X110	135	160.4	160.4	376	52.1
FU/YT-200S	200	135	200.2	200.2	428	62

135° Plain Blend

Code No	Size (mm)	Angle (°)	D (mm)	L (mm)
FU135BP-032S	32	135	36.3	26
FU135BP-040S	40	136	42.9	25
FU135BP-050S	50	135	55.9	28
FU135BP-082S	82	135	82.6	45
FU135BP-110S	110	135	110.2	50
FU135BP-160S	160	135	160.4	78
FU135BP-200S	200	135	200.2	100
FU135BP-250S	250	135	250.4	83.2
FU135BP-315S	315	135	315.5	102.2

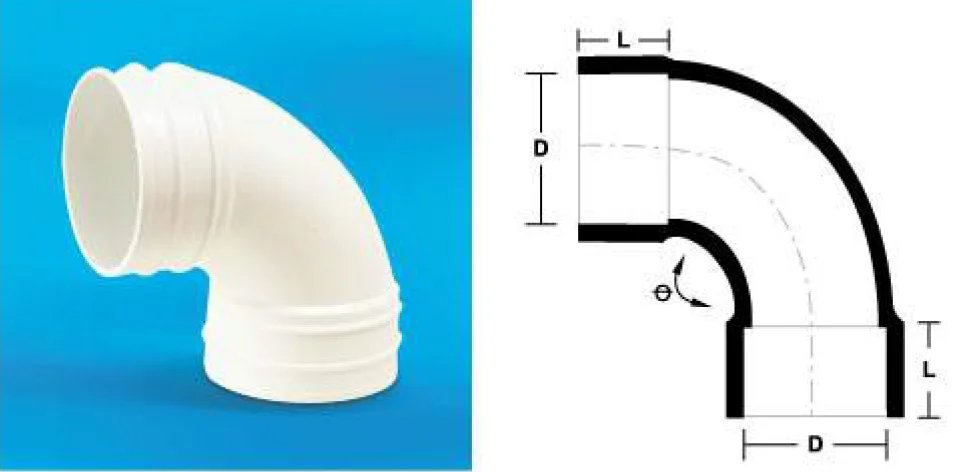

Sweep Blend

Code No	Size (mm)	Angle (°)	D (mm)	L (mm)
FU/SB-032S	32	91.25	36.3	24
FU/SB-040S	40	91.25	42.9	25
FU/SB-050S	50	91.25	55.9	28
FU/SB-082S	82	92.5	82.6	45
FU/SB-110S	110	92.5	110.2	50
FU/SB-160S	160	92.5	160.4	78
FU/SB-200S	200	92.5	200.2	99.3
FU/SB-250S	250	92.5	250.4	83.2
FU/SB-315S	315	92.5	315.5	102.2

Sweep Blend with 1/0

Code No	Size (mm)	Angle (°)	D (mm)	L (mm)
FU/SB-050S*I	50	91.25	55.9	28
FU/SB-082S*I	82	91.25	82.6	45
FU/SB-110S*I	110	91.25	110.2	50
FU/SB-160S*I	160	92.5	160.4	78
FU/SB-200S*I	200	92.5	200.2	99.3

Boss Connector

Code No	Size (mm)	D1 (mm)	D2 (mm)	L (mm)
FU/BC-082*50S	82X50	82.6	55.9	28
FU/BC-110*50S	110X50	110.2	55.9	28
FU/BC-110*82S	110X82	110.2	82.6	45
FU/BC-160*82S	160X82	160.4	82.6	45
FU/BC-160*110S	160X110	160.4	110.2	50

Straight Coupling

Code No	Size (mm)	D (mm)	L (mm)
FU/SC-032S	32	36.3	24
FU/SC-040S	40	42.9	25
FU/SC-050S	50	55.9	28
FU/SC-082S	82	82.6	45
FU/SC-110S	110	110.2	50
FU/SC-160S	160	160.4	78
FU/SC-200S	200	200.4	122.5
FU/SC-250S	250	250.4	83.2
FU/SC-315S	315	315.5	102.2

Pipe Sleeve

Code No	Size (mm)	D1 (mm)	L1 (mm)	L2 (mm)
FU/PS-050S	50	56.3	110.2	14.4
FU/PS-082S	82	82.6	110.8	16.8
FU/PS-110S	110	110.2	111.5	22.6
FU/SPS-160S	160	160.4	148.5	23.3
FU/PS-200S	200	200.4	122.5	179

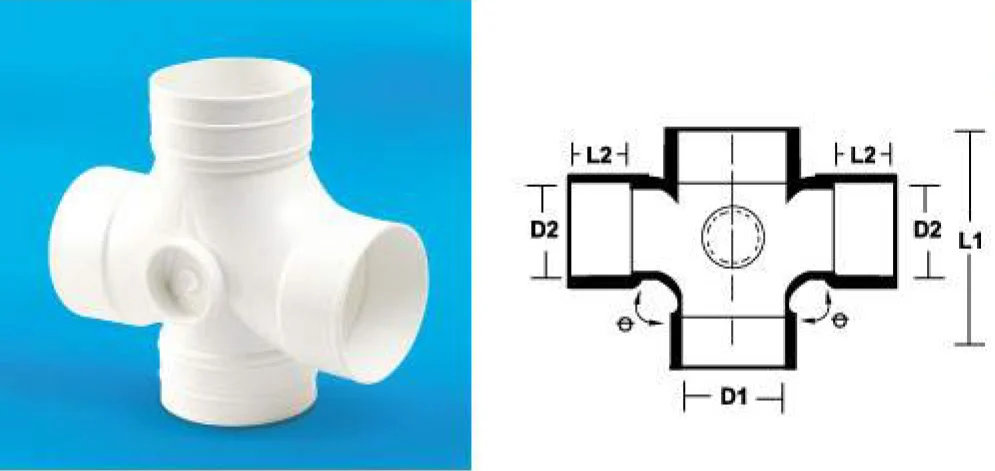

2-Way Junction (Cross Tee)

Code No	Size (mm)	Angle (°)	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)
FU/CT-110*110S	110X110	92.5	110.2	110.2	270	50
FU/CT-160*110S	160X110	92.5	160.4	110.2	315.3	50

Faucet (P/T) Socket

Code No	Size (mm)	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)	L3 (mm)
FU/PTS-032S	32	36.3	42.2	27.5	34.8	52.8
FU/PTS-040S	40	42.9	48.2	31.7	39.2	59.5

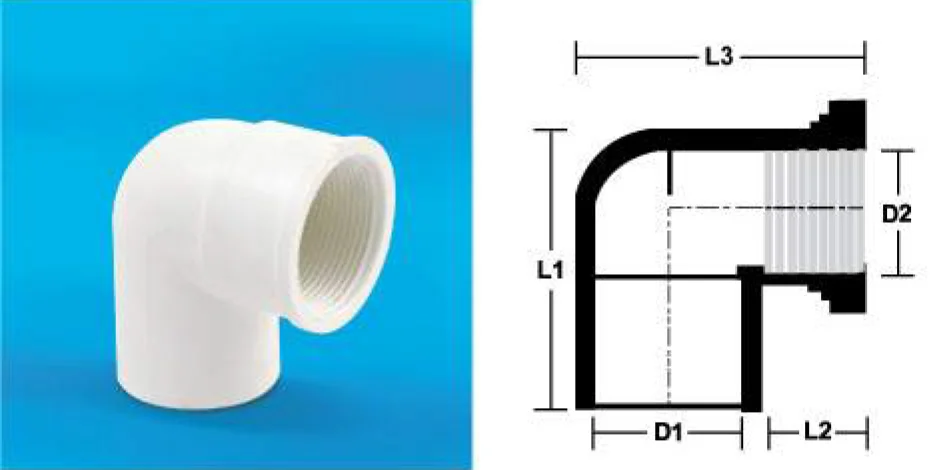

Faucet (P/T) Elbow

Code No	Size (mm)	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)	L3 (mm)
FU/PTS-032S	32	36.3	42.2	27.5	34.8	52.8
FU/PTS-040S	40	42.9	48.2	31.7	39.2	59.5

Bush Reducer

Code No	Size (mm)	D1 (mm)	D2 (mm)	L1 (mm)	L2 (mm)
FU/SR-040*32S	40X32	42.9	36.3	22	19
FU/CT-050*32S	50X32	55.9	36.3	28	19
FU/CT-050*40S	50X50	55.9	42.9	28	22
FU/CT-082*50S	82X50	82.6	55.9	45	28
FU/CT-110*50S	110X50	110.2	55.9	50	28
FU/CT-110*82S	110X82	110.2	82.6	50	45
FU/CT-160*82S	160X82	160.4	82.6	78	45
FU/CT-160*110S	160X110	160.4	110.2	78	50
FU/CT-200*110S	200X110	200.2	110.2	80	48
FU/CT-200*160S	200X160	200.2	160.2	80	58

Level Invert Reducer

Code No	Size (mm)	D1 (mm)	D2 (mm)	L (mm)
FU/RS-110*50S	110X50	110.2	55.9	124.6
FU/RS-110*82S	110X82	110.2	82.6	124.5
FU/RS-200*110S	200X110	200.2	110.2	160.0
FU/RS-200*160S	200X160	200.2	160.2	160.0

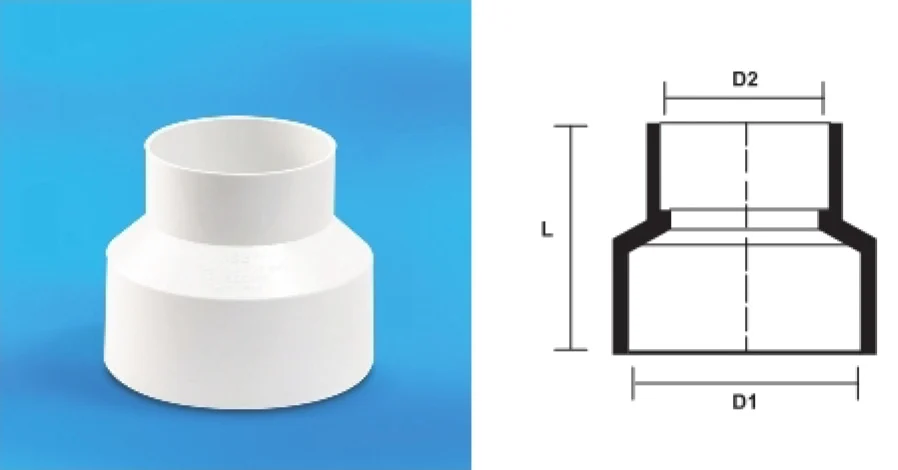

Concentric Reducer

Code No	Size (mm)	D1 (mm)	D2 (mm)	L (mm)
FU/RS-160*110S	160X100	160.4	110.2	141.3

P-Trap

Code No	Size (mm)	D (mm)	L1 (mm)	L2 (mm)	L3 (mm)
FU/PT-110S	110	110.2	50	380	270

P-Trap with 1/0

Code No	Size (mm)	D (mm)	L1 (mm)	L2 (mm)	L3 (mm)
FU/PT-050S*I	50	55.9	28	240	180
FU/PT-110S*I	110	110.2	50	380	270

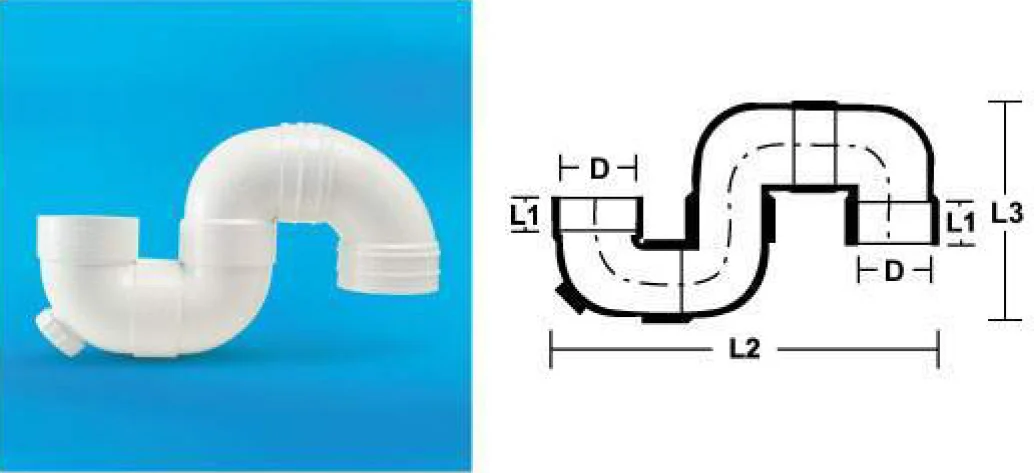

S-Trap with 1/0

Code No	Size (mm)	D (mm)	L1 (mm)	L2 (mm)	L3 (mm)
FU/ST-110S*I	110	110.2	50	470	285

Floor Gully

Code No	Size (mm)	D1 (mm)	D2 (mm)	L (mm)
FU/FG-110*50S	110X50	110.2	55.9	190.5
FU/FG-110*82S	110X82	110.2	82.6	190.5
FU/FG-11055S	110X50X50	110.2	55.9	190.5

End Cap

Code No	Size (mm)	D (mm)	L (mm)
FU/EC-050S	50	55.0	35
FU/EC-110S	110	110.2	25

Vent Cowl

Code No	Size (mm)	D (mm)	L1 (mm)	L2 (mm)
FU/VC-050S	50	55.9	29.8	43.2
FU/VC-082S	82	82.6	25	48
FU/VC-110S	110	110.2	26	64
FU/VC-160S	160	160.4	51.9	90.1

Access Plug

Code No	Size (mm)	D (mm)	L1 (mm)	L2 (mm)
FU/AP-040S	40	42.9	44.3	42.7
FU/AP-050S	50	55.9	45.4	44.3
FU/AP-082S	82	82.6	87.0	51.5
FU/AP-110S	110	110.2	76.5	84.3
FU/AP-160S	160	160.4	159	95
