Spind Products

Spind HDPE Pipes

BBB-SPIND High Density Polyethylene (HDPE) Pipe

COLD WATER PIPES TO MS 1058: PART 2:2005 Manufactured to: BS 6572, BS 6730, ISO-161-1 & DIN 8074 – 20mm to 63mm Fabricated by one of the major HDPE pipe manufacturer in Malaysia, BBB-SPIND® HDPE pipes is manufactured to the strict conformity to MS 1058: PART 2:2005 standard specifications. Our products are licensed by SIRIM and approved by local water authorities to be used as the top mark for quality. The top mark obtained in testing bear testimony to SPIND’s commitment to a manufacturing, testing and quality control systems that complies to the stringent licensing requirements.

Explore more: Floor Trap Grating, UPVC Pipe Malaysia, Joint Fittings

Pipe (mm) e min (mm) e max (mm) Weight (kg/m)
PN 16
20 2.3 2.7 0.131
PN 12.5
25 2.3 2.7 0.169
32 3.0 3.4 0.280
40 3.7 4.2 0.427
50 4.6 5.2 0.663
63 5.8 6.5 1.05
75 6.8 7.6 1.47
90 8.2 9.2 2.12
110 11.0 11.1 3.16

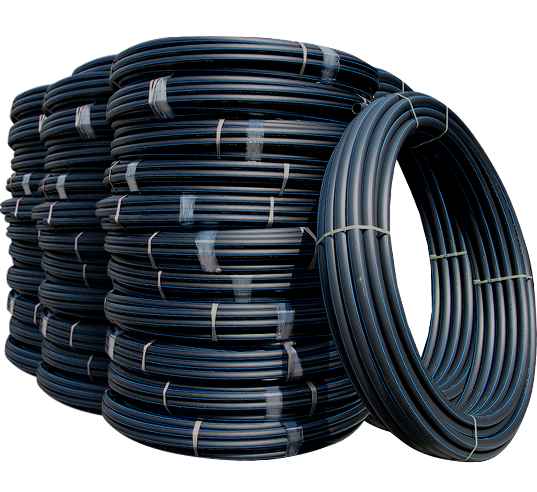

HDPE Pipes from SPIND

Spind HDPE Pipes

BBB-SPIND High Density Polyethylene (HDPE) Pipe

COLD WATER PIPES TO MS 1058: PART 2:2005 Manufactured to: BS 6572, BS 6730, ISO-161-1 & DIN 8074 – 20mm to 63mm Fabricated by one of the major HDPE pipe manufacturer in Malaysia, BBB-SPIND® HDPE pipes is manufactured to the strict conformity to MS 1058: PART 2:2005 standard specifications. Our products are licensed by SIRIM and approved by local water authorities to be used as the top mark for quality. The top mark obtained in testing bear testimony to SPIND’s commitment to a manufacturing, testing and quality control systems that complies to the stringent licensing requirements.

Pipe (mm) e min (mm) e max (mm) Weight (kg/m)
PN 16
20 2.3 2.7 0.131
PN 12.5
25 2.3 2.7 0.169
32 3.0 3.4 0.280
40 3.7 4.2 0.427
50 4.6 5.2 0.663
63 5.8 6.5 1.05
75 6.8 7.6 1.47
90 8.2 9.2 2.12
110 11.0 11.1 3.16

Spind® High Density Polyethylene
(HDPE) pipe Dimension and Weight (PE 80)

SPIND HIGH DENSITY POLYETHYLENE
(HDPE) PIPE DIMENSION AND WEIGHT (PE80)

  PIPE SERIES
  S-10 S-8 S-6.3 S-5 S-5
  NORMAL PRESSURE FOR DESIGN STRESS 6.3N/mm2
  PN 6.3 PN 8 PN 10 PN 12.5 PN 16
OD t wt t wt t wt t wt t wt
mm mm kg/m mm kg/m mm kg/m mm kg/m mm kg/m
20 –  –  –  –  –   –  2.0 0.117 2.3 0.135
25 –  –  –  –  –  –  2.3 0.171 2.8 0.202
32 2.0 0.19 –  –  2.4 0.23 2.9 0.279 3.6 0.330
40 –  –  2.4 0.297 –  –  3.7 0.430 4.5 0.514
50 2.4 0.38 –  –  3.7 0.56 4.6 0.666 5.6 0.795
63 3.0 0.58 3.8 0.724 4.7 0.88 5.8 1.05 7.1 1.27
75 3.6 0.83 4.5 1.02 5.5 1.23 6.8 1.48 8.4 1.78
90 4.3 1.19 5.4 1.47 6.6 1.76 8.2 2.12 10.0 2.55
110 5.3 1.78 6.6 2.18 8.1 2.63 10.0 3.14 12.3 3.80
125 6.0 2.29 7.4 2.77 9.2 3.39 11.4 4.08 14.0 4.90
140 6.7 2.84 8.3 3.48 10.3 4.24 12.7 5.11 15.7 6.16
160 7.7 3.73 9.5 4.54 11.8 5.53 14.6 6.67 17.9 8.01
180 8.6 4.68 10.7 5.73 13.3 7.01 16.4 8.42 20.1 10.14
200 9.6 5.79 11.9 7.07 14.7 8.60 18.2 10.4 22.4 12.53
225 10.8 7.32 13.4 8.95 16.6 10.91 20.5 13.1 25.1 15.78
250 11.9 8.98 14.8 10.95 18.4 13.44 22.7 16.2 27.9 19.48

Spind® High Density Polyethylene
(HDPE) pipe Dimension and Weight (PE 100)

Standard: MS 1058 equivalent to ISO 4427
Color: Black with 4 blue stripes



SPIND HIGH DENSITY POLYETHYLENE
(HDPE) PIPE DIMENSION AND WEIGHT (PE100)
STANDARD : MS 1058 EQUIVALENT TO ISO 4427 •COLOR : BLACK WITH 4 BLUE STRIPES
PIPE
PN10

PN12.5

PN16
OD e min e max Wt e min e max Wt e min e max Wt
mm mm mm kg/m mm mm kg/m mm mm kg/m
20





2.0 2.3 0.117
25


2.0 2.3 0.149 2.3 2.7 0.171
32 2.0 2.3 0.194 2.4 2.8 0.231 3.0 3.4 0.279
40 2.4 2.8 0.295 3.0 3.5 0.362 3.7 4.2 0.431
50 3.0 3.4 0.453 3.7 4.2 0.550 4.6 5.2 0.669
63 3.8 4.3 0.722 4.7 5.3 0.877 5.8 6.5 1.057
75 4.5 5.1 1.02 5.6 6.3 1.24 6.8 7.6 1.48
90 5.4 6.1 1.47 6.7 7.5 1.78 8.2 9.2 2.14
110 6.6 7.4 2.18 8.1 9.1 2.64 10.0 11.1 3.17
125 7.4 8.3 2.78 8.2 10.3 3.39 11.4 12.7 4.12
160 9.5 10.6 4.56 11.8 13.1 5.55 14.6 16.2 6.73
180 10.7 11..9 5.76 13.3 14.8 7.05 16.4 18.2 8.51
200 11.9 13.2 7.11 14.7 16.3 8.65 18.2 20.2 10.50
225 13.4 14.9 9.02 16.6 18.4 10.98 20.5 22.7 13.28
250 14.8 16.4 11.05 18.4 20.4 13.52 22.7 25.1 16.33
280 16.6 18.4 13.89 20.6 22.8 16.94 25.4 28.1 20.48
315 18.7 20.7 17.58 23.2 25.7 21.47 28.6 31.6 25.92
355 21.1 23.4 22.38 26.1 28.9 27.23 32.2 25.6 32.91
400 23.7 26.2 28.28 29.4 32.5 34.52 36.3 40.1 41.78
450 26.7 29.5 35.83 33.1 36.6 43.73 40.9 45.1 52.90
500 27.7 32.8 44.28 36.8 40.6 53.97 45.4 50.1 65.29
560 33.2 36.7 55.47 41.2 45.5 67.71 50.8 56.0 81.79
630 37.4 41.3 70.26 46.3 51.1 85.58 57.2 63.1 103.63
