Technical Advice

Prezfit Nylon

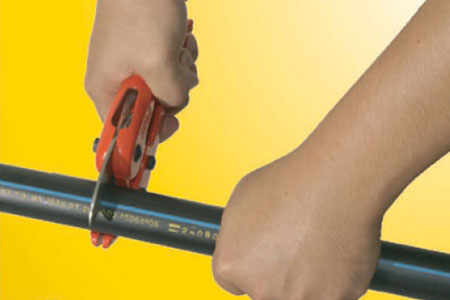

Step 1

Cut the HDPE pipe to length with pipe cutter or saw.

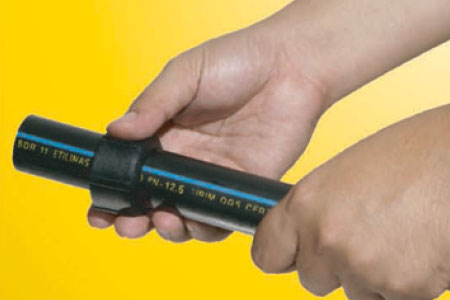

Step 2

Slide the nut with the back end going onto the pipe.

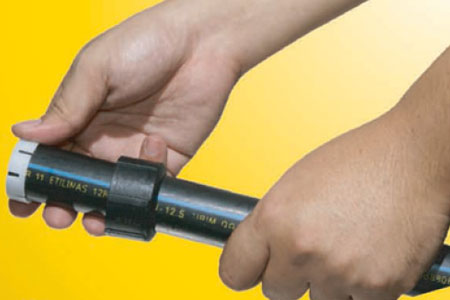

Step 3

Slide the compression ring onto the pipe.

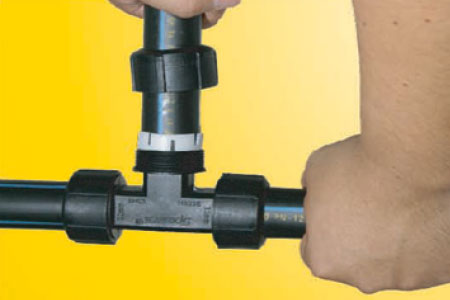

Step 4

Push the fitting into pipe until the butt end. Then make sure the compression ring is also pused to the putt end of the fitting.

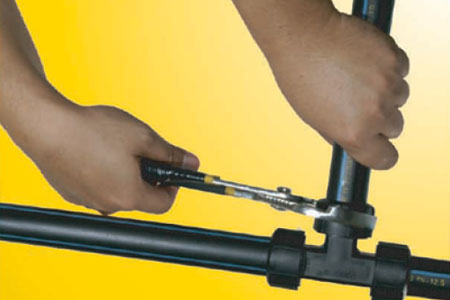

Step 5

Fasten the nut with hand follow by tightening with pipe wrench.

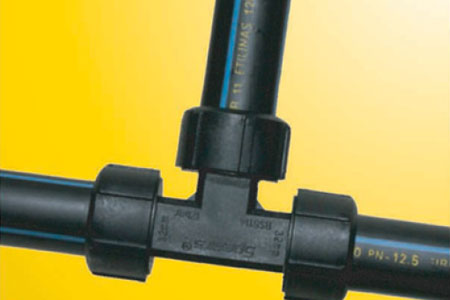

Step 6

Neat and clean – Simply easy and reliable joint.

Prezfit Nylon

Step 1

Cut the HDPE pipe to length with pipe cutter or saw.

Step 2

Slide the nut with the back end going onto the pipe.

Step 3

Slide the compression ring onto the pipe.

Step 4

Push the fitting into pipe until the butt end. Then make sure the compression ring is also pused to the putt end of the fitting.

Step 5

Fasten the nut with hand follow by tightening with pipe wrench.

Step 6

Neat and clean – Simply easy and reliable joint.
