SPIND Side Flow Floor traps are integral part of all buildings in their usage as a waste water discharge system that will trap dirt from entering the SWV pipe and at the same time providing a trap seal to prevent foul gases, rodents and insects from entering back into buildings. SIRIM BS EN 1253K3 Standards (SIRIM Certificate No.PS112002)
Conventional floor traps usage in our current situation warrants us to clean or dislodge any blockage in trap from the floor below, which will cause inconvenience and its messy installation will deprive head room in toilets.
Spind is proud to present our fully cast in slab design trap that will overcome all these drawbacks and can be easily accessed and cleaned from the top.
Our design allows the basin or kitchen sink to be connected directly to trap. The trap itself has a 2″ outlet that is more than sufficient to allow for flow rates in bathrooms.
The connection of the air-condition drain pipe must be made using SPIND Special Design 20mm U-Bend with Bush. Discharge of the air-condition drain pipe into the floor trap may cause condensation on the floor trap base or on the pipe leading to the stack. Proper insulation with the use of insuflex is recommended to prevent this problem.

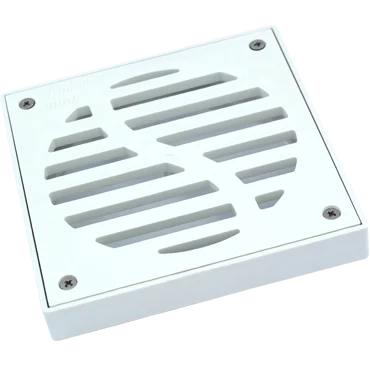

| Collar | Grating | Locking |
|---|---|---|
| Upvc or ABS plastic | Upvc or ABS plastic | 4 screws SS304 (Anti-Vandalism) |

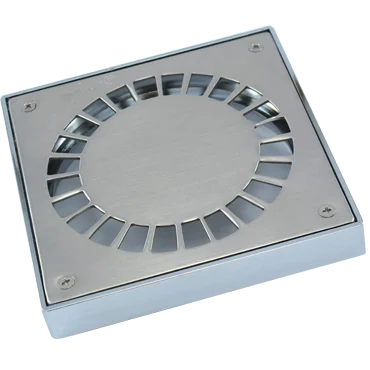

| Collar | Grating | Locking |
|---|---|---|
| Upvc or ABS Plastic Chrome | Stainless Steel SS304 | 4 screws SS304 (Anti-Vandalism) |
| Collar | Grating |
|---|---|
| 1.0mm SS304 | 2.0mm SS304 (With Lock) |
| Collar | Grating |
|---|---|
| Upvc or ABS plastic | Upvc or ABS Plastic (with Twist Lock function) |
| Collar | Grating |
|---|---|
| Upvc or ABS Plastic Chrome | Stainless Steel SS304 |
| Collar | Grating |
|---|---|
| Upvc or ABS Plastic | Upvc or ABS Plastic (With Twist Lock function) |
| Collar | Grating |
|---|---|
| Upvc or ABS Plastic | Upvc or ABS Plastic |

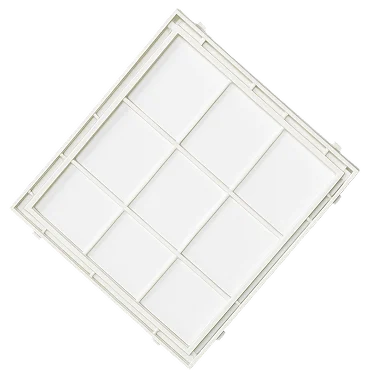

| Collar | Holder | Base |
|---|---|---|
| SS 304 | SS304 | Upvc or ABS Plastic |
