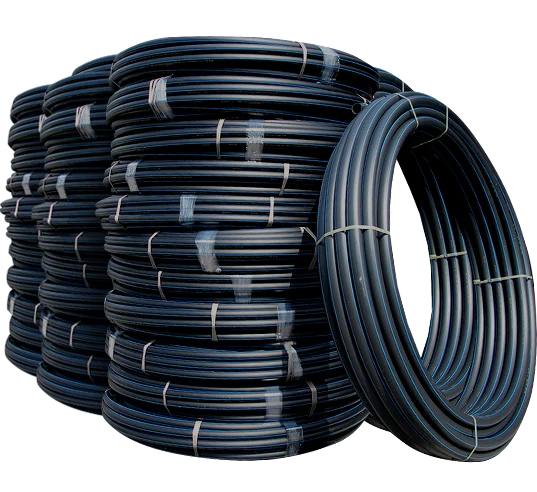

COLD WATER PIPES TO MS 1058: PART 2:2005 Manufactured to: BS 6572, BS 6730, ISO-161-1 & DIN 8074 – 20mm to 630mm Fabricated by one of the significant HDPE pipe manufacturers in Malaysia, BBB-SPIND® HDPE pipes are manufactured to the strict conformity to MS 1058: PART 2:2005 standard specifications.HDPE pipe is one type of plastic pipe suitable for replacing copper and steel pipelines to transfer cold water, gas and others. As a reliable high-density polyethylene (HDPE) pipe supplier and manufacturer in Malaysia, our products are licensed by SIRIM and approved by local water authorities to be at the top of the quality list. The top mark obtained in testing bears testimony to SPIND’s commitment to manufacturing, testing and quality control systems that comply with the stringent licensing requirements.
For complete system solutions, we are also a trusted HDPE fitting supplier, offering a range of high-quality fittings for your HDPE pipe installations.
Check out our catalogue or contact us for more details about HDPE pipes.
| Pipe Ø (mm) | e min (mm) | e max (mm) | Weight (kg/m) |
|---|---|---|---|
| PN 16 | |||
| 20 | 2.3 | 2.6 | 0.135 |
| PN 12.5 | |||
| 25 | 2.3 | 2.6 | 0.171 |
| 32 | 2.9 | 3.3 | 0.270 |
| 40 | 3.7 | 4.1 | 0.430 |
| 50 | 4.6 | 5.1 | 0.666 |
| 63 | 5.8 | 6.4 | 1.05 |
| Pipe Ø (mm) | e min (mm) | e max (mm) | Weight (kg/m) |
|---|---|---|---|
| PN 20 | |||
| 20 | 2.3 | 2.7 | 0.133 |
| PN 16 | |||
| 25 | 2.3 | 2.7 | 0.171 |
| 32 | 3.0 | 3.4 | 0.279 |
| 40 | 3.7 | 4.2 | 0.431 |
| 50 | 4.6 | 5.2 | 0.669 |
| 63 | 5.8 | 6.5 | 1.057 |
| Pipe-Series | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| S-10 | S-8 | S-6.3 | S-5 | S-4 | ||||||
| Normal Pressure For Design Stress 6.3 N/mm² | ||||||||||
| PN 6.3 | PN 8 | PN 10 | PN 12.5 | PN 16 | ||||||
| OD mm | t mm | wt kg/m | t mm | wt kg/m | t mm | wt kg/m | t mm | wt kg/m | t mm | wt kg/m |
| 20 | – | – | – | – | – | – | 2.0 | 0.117 | 2.3 | 0.135 |
| 25 | – | – | – | – | – | – | 2.3 | 0.171 | 2.8 | 0.202 |
| 32 | 2.0 | 0.19 | – | – | 2.4 | 0.23 | 2.9 | 0.279 | 3.6 | 0.330 |
| 40 | – | – | 2.4 | 0.297 | – | – | 3.7 | 0.430 | 4.5 | 0.514 |
| 50 | 2.4 | 0.38 | – | – | 3.7 | 0.56 | 4.6 | 0.666 | 5.6 | 0.795 |
| 63 | 3.0 | 0.58 | 3.8 | 0.724 | 4.7 | 0.88 | 5.8 | 1.05 | 7.1 | 1.27 |
| 75 | 3.6 | 0.83 | 4.5 | 1.02 | 5.5 | 1.23 | 6.8 | 1.48 | 8.4 | 1.78 |
| 90 | 4.3 | 1.19 | 5.4 | 1.47 | 6.6 | 1.76 | 8.2 | 2.12 | 10.0 | 2.55 |
| 110 | 5.3 | 1.78 | 6.6 | 2.18 | 8.1 | 2.63 | 10.0 | 3.14 | 12.3 | 3.80 |
| 125 | 6.0 | 2.29 | 7.4 | 2.77 | 9.2 | 3.39 | 11.4 | 4.08 | 14.0 | 4.90 |
| 140 | 6.7 | 2.84 | 8.3 | 3.48 | 10.3 | 4.24 | 12.7 | 5.11 | 15.7 | 6.16 |
| 160 | 7.7 | 3.73 | 9.5 | 4.54 | 11.8 | 5.53 | 14.6 | 6.67 | 17.9 | 8.01 |
| 180 | 8.6 | 4.68 | 10.7 | 5.73 | 13.3 | 7.01 | 16.4 | 8.42 | 20.1 | 10.14 |
| 200 | 9.6 | 5.79 | 11.9 | 7.07 | 14.7 | 8.60 | 18.2 | 10.4 | 22.4 | 12.53 |
| 225 | 10.8 | 7.32 | 13.4 | 8.95 | 16.6 | 10.91 | 20.5 | 13.1 | 25.1 | 15.78 |
| 250 | 11.9 | 8.98 | 14.8 | 10.98 | 18.4 | 13.44 | 22.7 | 16.2 | 27.9 | 19.48 |
| Pipe Size mm | Outside Dimension (OD) mm | SDR 17 | SDR 13.6 | SDR 11 | SDR 9 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN10 | PN12.5 | PN16 | PN20 | |||||||||||
| e min | e max | Wt. kg/m | e min | e max | Wt. kg/m | e min | e max | Wt. kg/m | e min | e max | Wt. kg/m | |||
| 20 | 20.0 | 20.3 | – | – | – | – | – | – | 2.0 | 2.3 | 0.117 | 2.3 | 2.7 | 0.133 |
| 25 | 25.0 | 25.3 | – | – | – | 2.0 | 2.3 | 0.149 | 2.3 | 2.7 | 0.171 | 3.0 | 3.4 | 0.212 |
| 32 | 32.0 | 32.3 | 2.0 | 2.3 | 0.194 | 2.4 | 2.8 | 0.231 | 3.0 | 3.4 | 0.279 | 3.6 | 4.1 | 0.328 |
| 40 | 40.0 | 40.4 | 2.4 | 2.8 | 0.295 | 3.0 | 3.5 | 0.362 | 3.7 | 4.2 | 0.431 | 4.5 | 5.1 | 0.512 |
| 50 | 50.0 | 50.4 | 3.0 | 3.4 | 0.453 | 3.7 | 4.2 | 0.550 | 4.6 | 5.2 | 0.669 | 5.6 | 6.3 | 0.793 |
| 63 | 63.0 | 63.4 | 3.8 | 4.3 | 0.722 | 4.7 | 5.3 | 0.877 | 5.8 | 6.5 | 1.057 | 7.1 | 8.0 | 1.27 |
| 75 | 75.0 | 75.5 | 4.5 | 5.1 | 1.02 | 5.6 | 6.3 | 1.24 | 6.8 | 7.6 | 1.48 | – | – | – |
| 90 | 90.0 | 90.6 | 5.4 | 6.1 | 1.47 | 6.7 | 7.5 | 1.78 | 8.2 | 9.2 | 2.14 | – | – | – |
| 110 | 110.0 | 110.7 | 6.6 | 7.4 | 2.18 | 8.1 | 9.1 | 2.64 | 10.0 | 11.1 | 3.17 | – | – | – |
| 125 | 125.0 | 125.8 | 7.4 | 8.3 | 2.78 | 9.2 | 10.3 | 3.39 | 11.4 | 12.7 | 4.12 | – | – | – |
| 160 | 160.0 | 161.0 | 9.5 | 10.6 | 4.56 | 11.8 | 13.1 | 5.55 | 14.6 | 16.2 | 6.73 | – | – | – |
| 180 | 180.0 | 181.1 | 10.7 | 11.9 | 5.76 | 13.3 | 14.8 | 7.05 | 16.4 | 18.2 | 8.51 | – | – | – |
| 200 | 200.0 | 201.2 | 11.9 | 13.2 | 7.11 | 14.7 | 16.3 | 8.65 | 18.2 | 20.2 | 10.5 | – | – | – |
| 225 | 225.0 | 226.4 | 13.4 | 14.9 | 9.02 | 16.6 | 18.4 | 10.98 | 20.5 | 22.7 | 13.28 | – | – | – |
| 250 | 250.0 | 251.5 | 14.8 | 16.4 | 11.05 | 18.4 | 20.4 | 13.52 | 22.7 | 25.1 | 16.33 | – | – | – |
| 280 | 280.0 | 281.7 | 16.6 | 18.4 | 13.89 | 20.6 | 22.8 | 16.94 | 25.4 | 28.1 | 20.48 | – | – | – |
| 315 | 315.0 | 316.9 | 18.7 | 20.7 | 17.58 | 23.2 | 25.7 | 21.47 | 28.6 | 31.6 | 25.92 | – | – | – |
| 355 | 355.0 | 357.2 | 21.1 | 23.4 | 22.38 | 26.1 | 28.9 | 27.23 | 32.2 | 35.6 | 32.91 | – | – | – |
| 400 | 400.0 | 402.4 | 23.7 | 26.2 | 28.28 | 29.4 | 32.5 | 34.52 | 36.3 | 40.1 | 41.78 | – | – | – |
| 450 | 450.0 | 454.1 | 26.7 | 29.5 | 35.83 | 33.1 | 36.6 | 43.73 | 40.9 | 45.1 | 52.9 | – | – | – |
| 500 | 500.0 | 504.6 | 27.7 | 32.8 | 44.28 | 36.8 | 40.6 | 53.97 | 45.4 | 50.1 | 65.29 | – | – | – |
| 560 | 560.0 | 565.0 | 33.2 | 36.7 | 55.47 | 41.2 | 45.5 | 67.71 | 50.8 | 56.0 | 81.79 | – | – | – |
| 630 | 630.0 | 635.7 | 37.4 | 41.3 | 70.26 | 46.3 | 51.1 | 85.58 | 57.2 | 63.1 | 103.63 | – | – | – |
Yes, SPIND HDPE pipes are multipurpose and can be used in residential, commercial, and industrial areas, as well as for water supply, irrigation, and gas lines.
Absolutely. The SPIND HDPE pipes are very durable, resistant to corrosion, and lighter, making them an excellent alternative to conventional metal pipes such as copper or steel.
The SPIND HDPE pipes are SIRIM licensed and comply with MS 1058. Local water authorities also approve them, and they are reliable and of high quality.
It is easy and fast to install. HDPE pipes are typically fitted with dependable and straightforward joint fittings or heat-fused joints, which are not complex or expensive to install.
Yes, SPIND HDPE pipes are very corrosion-resistant, chemical-resistant and UV-resistant, and thus suitable in extreme environments and prolonged outdoor applications.
Yes, SPIND HDPE pipes are available in various pressure ratings (PN 6.3 to PN 16), and therefore, they can be used with confidence in high-pressure water supply systems in multiple applications.
Yes, HDPE pipes can be recycled, are long-lasting, and have a long life cycle, which is much less harmful to the environment than conventional materials, such as metal or PVC.
