SPIND Mini Floor Gully/Trap – a top accessible floor trap grating to complement our existing range of floor traps. The floor trap is compact yet functional in every sense to allow top access for cleaning and maintenance purpose.
SIRIM BS EN 1253K3 Standards (SIRIM Certificate No.PS112002)
A truly innovative design that is compact for various installations where a conventional (150mm x 150mm) grating may not be suitable or look out of place. This design complements our highly innovative pipe sleeve with its 40mm inlet to connect from kitchen sink or basin without the need to crudely drill holes for connection. With this design, just punch a hole in the inlets provided and solvent cement the joint. No more leakage in future.
A fully cast in slab design simply allows for more headroom in toilet and at the same time eliminate messy conventional floor traps that protrude below the slab.
View more: UPVC Pipe Malaysia, Bathroom Floor Trap Malaysia
The connection of the air-condition drain pipe must be made using SPIND Special Design 20mm U-Bend with Bush. Discharge of the air-condition drain pipe into the floor trap may cause condensation on the floor trap base or on the pipe leading to the stack. Proper insulation with the use of insuflex is recommended to prevent this problem.

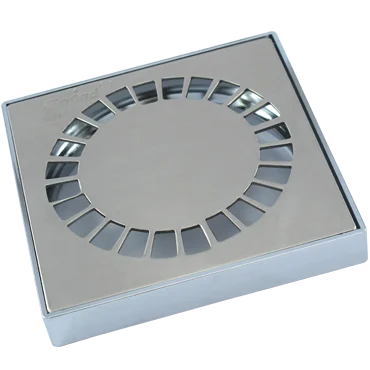

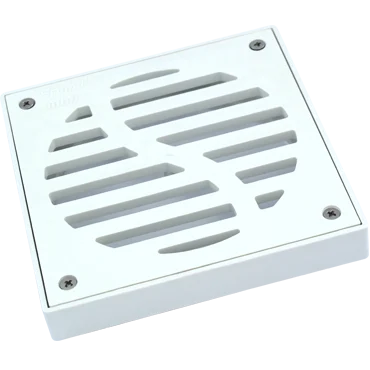

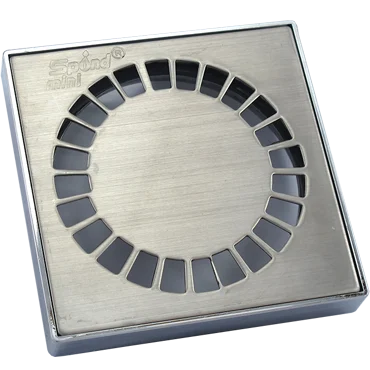

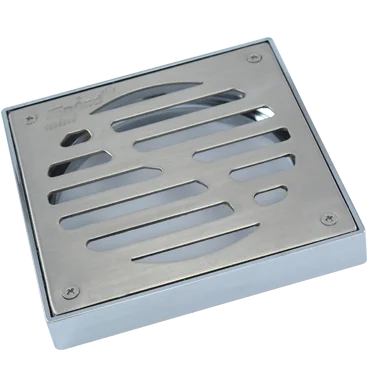

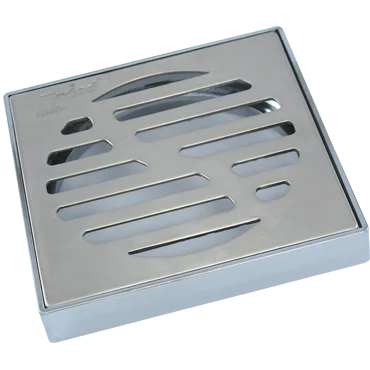

| Collar | Grating |
|---|---|
| Upvc or ABS plastic | Upvc or ABS plastic |
| Collar | Grating |
|---|---|
| Upvc or ABS Plastic Chrome | Stainless Steel SS304 |
| Collar | Grating | Locking |
|---|---|---|
| Upvc or ABS Plastic Chrome | Stainless Steel SS304 | 4 screws SS304 (Anti-Vandalism) |
| Collar | Grating |
|---|---|
| Upvc or ABS Plastic Chrome | Stainless Steel SS304 (100mm x 100mm) |
| Collar | Grating |
|---|---|
| Upvc or ABS plastic | Upvc or ABS plastic |
| Collar | Grating |
|---|---|
| Stainless Steel SS304 | Stainless Steel SS304 (100mm x 100mm) |
| Collar | Grating | Locking |
|---|---|---|
| Upvc or ABS Plastic | Upvc or ABS Plastic | 4 screws SS304 (Anti-Vandalism) |
| Collar | Grating |
|---|---|
| Upvc or ABS Plastic | Stainless Steel SS304 |
| Collar | Grating | Locking |
|---|---|---|
| Upvc or ABS Plastic | Stainless Steel SS304 (100mm x 100mm) | 4 screws SS304 (Anti-Vandalism) |
| Collar | Grating | Locking |
|---|---|---|
| Upvc or ABS Plastic | Upvc or ABS Plastic | 4 screws SS304 (Anti-Vandalism) |
